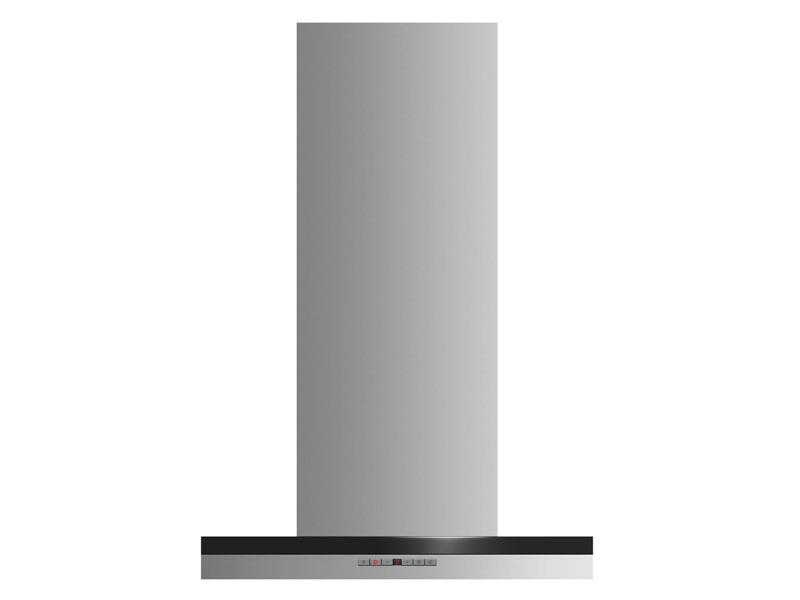

24" Fisher & Paykel Wall Chimney Vent Hood Box - HC24DTXB2
Wall Chimney Vent Hood, 24", Box
This Fisher & Paykel 24" wall chimney box vent hood quietly and efficiently removes steam and cooking odors.
Removable, easy to clean filters that effectively trap grease
An easy to use control panel
Four fan speeds for quick and effective extraction
Quiet and effective
This vent hood features four fan speeds providing powerful extraction to quickly remove odours and steam. Odors can linger in the kitchen well after cooking is finished so the timer keeps the vent hood working for up to 15 minutes before automatically turning off.
Simple to use

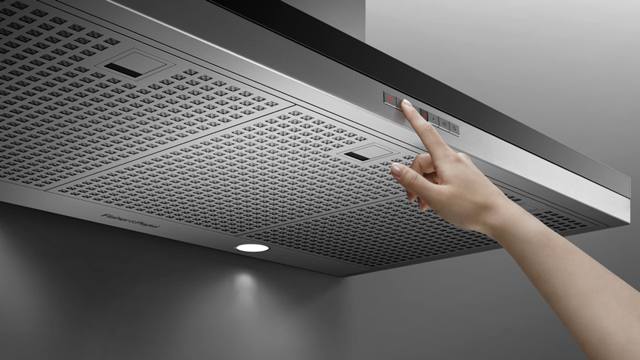

This Fisher & Paykel chimney range hood features a sleek and easy to use soft-touch control panel. This range hood’s LED lights provide bright, warm, energy efficient lighting ensuring the entire cooktop surface is illuminated.
Easy cleaning
The black glass and stainless steel finish is easily wiped clean. Multi-layered, dishwasher safe filters trap grease effectively and can easily be removed for cleaning.
Designed to match
This wall chimney vent hood's sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel's kitchen appliance family.
CONTROLS | |
---|---|
Light type | LED 2 x 6W |
Control Type | Soft-touch button |
Warranty | |
Warranty | 2 years parts & labor |
DETAILS | |
UPC Code | 822843500826 |
Power requirement | |
Total Power | 542W |
Supply voltage | 120V |
Specification | |
Depth | 19 11/16" |
Height | 23 3/4 - 41 1/16" |
Width | 23 9/16" |
Fan ratings | |
Maximum air movement | 600CFM |
Maximum decibel rating | 67dBA |
Speed 1 airflow | 316CFM |
Speed 1 sound rating | 48dBA |
Speed 2 airflow | 432CFM |
Speed 2 sound rating | 58dBA |
Speed 3 airflow | 542CFM |
Speed 3 sound rating | 63dBA |
Speed 4 airflow | 600CFM |
Speed 4 sound rating | 67dBA |
Configuration and Overview | |
Extraction type | Surface |
Filter type | Mesh |
Number of filters | 2 |
Speeds | 4 |
Installation Considerations | |
Air outlet | 6" |
Ducted | Top extraction |
Recirculation | Optional - top extraction |
Cleaning | |
Dishwasher safe filters | 2 |
OPTIONAL ACCESSORIES | |
Chimney extension | 791774 |
Light bulb | 792579 |
Recirculation carbon filter(s) | 791772 |
Recirculation diverter | 792580 |
Power requirement | |
Rated current | 5.2A |
Supply frequency | 60Hz |
