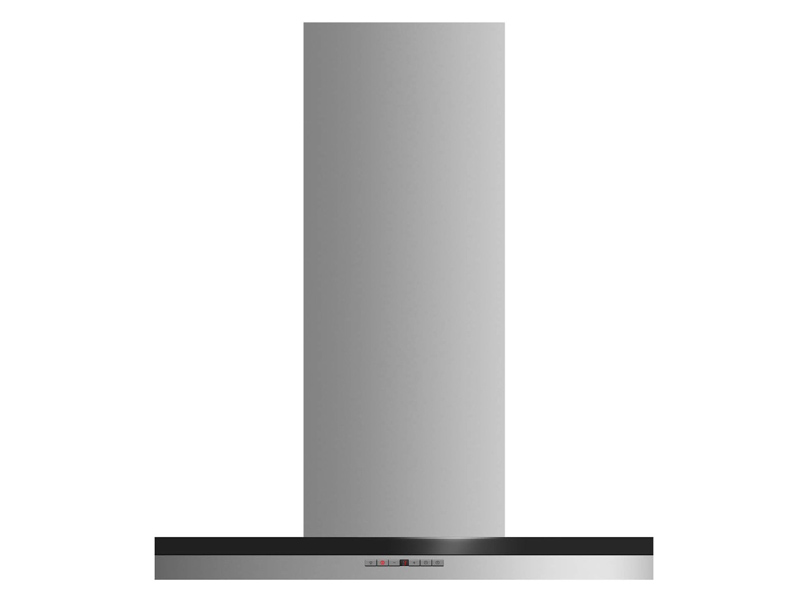

30" Fisher & Paykel Wall Chimney Vent Hood Box - HC30DTXB2
Wall Chimney Vent Hood, 30", Box
This Fisher & Paykel 30" wall chimney box vent hood quietly and efficiently removes steam and cooking odors.
Removable, easy to clean filters that effectively trap grease
An easy to use control panel
Four fan speeds for quick and effective extraction
Quiet and effective

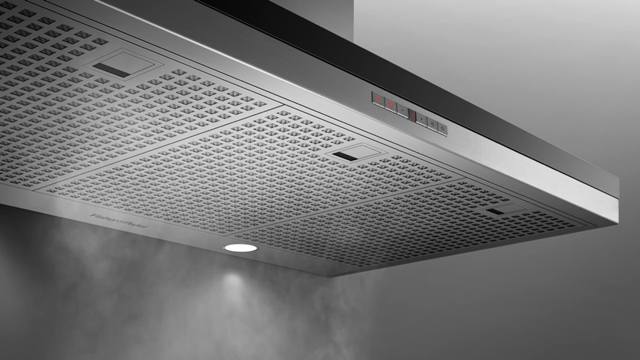

This range hood features four fan speeds providing powerful extraction to quickly remove odours and steam. As odors can linger in the kitchen well after cooking is finished, the timer keeps the vent hood working for up to 15 minutes before automatically turning off.
Simple to use

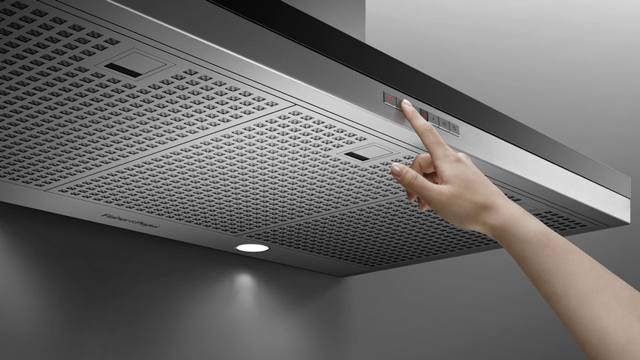

This Fisher & Paykel chimney range hood features a sleek and easy to use soft-touch control panel. This range hood’s LED lights provide bright, warm, energy efficient lighting ensuring the entire cooktop surface is illuminated
Easy cleaning
The black glass and stainless steel finish is easily wiped clean. Multi-layered, dishwasher safe filters trap grease effectively and can easily be removed for cleaning.
Designed to match
This wall chimney vent hood's sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel's kitchen appliance family.
Installation Considerations | |
---|---|
Recirculation | Optional - top extraction |
Ducted | Top extraction |
Air outlet | 6" |
Configuration and Overview | |
Speeds | 4 |
Number of filters | 2 |
Filter type | Mesh |
Extraction type | Surface |
Fan ratings | |
Speed 4 sound rating | 67dBA |
Speed 4 airflow | 600CFM |
Speed 3 sound rating | 63dBA |
Speed 3 airflow | 542CFM |
Speed 2 sound rating | 58dBA |
Speed 2 airflow | 432CFM |
Speed 1 sound rating | 48dBA |
Speed 1 airflow | 316CFM |
Maximum decibel rating | 67dBA |
Maximum air movement | 600CFM |
Specification | |
Width | 29 3/4" |
Height | 23 3/4 - 41 1/16" |
Depth | 19 11/16" |
OPTIONAL ACCESSORIES | |
Light bulb | 792579 |
Cleaning | |
Dishwasher safe filters | 2 |
OPTIONAL ACCESSORIES | |
Chimney extension | 791774 |
Recirculation carbon filter(s) | 791772 |
Recirculation diverter | 792580 |
Power requirement | |
Rated current | 5.2A |
Supply frequency | 60Hz |
Supply voltage | 120V |
Total Power | 543 |
CONTROLS | |
Control type | Soft-touch |
Light type | LED 2 x 6W |
DETAILS | |
UPC Code | 822843500833 |
Warranty | |
Warranty | 2 years parts & labor |
